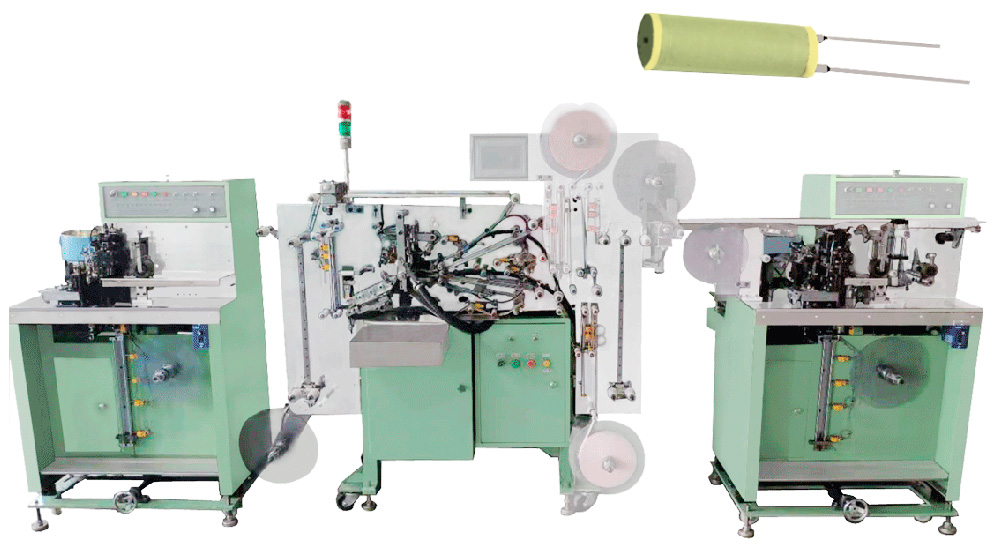

Super wide type screw joint winding machine


JLX-800C



Equipment introduction

l  Specializing in slender products;

l  The overlapping precision of positive and negative foils is ± 0.5mm;

l  Overlap precision of electrolytic paper ± 0.3mm;

l  The length error of aluminum foil shall be controlled within 0.2% of the total length;

l  The accuracy of foot pitch deviation shall be controlled within ± 10%;


Equipment parameters

Product diameter

¢10-¢18

Needle specifications

¢ 3.0-4.0 Optional

Aluminum foil width

30--60mm

Needle of nail machine

¢1.0

Electrolytic paper width

34-65mm

Formwork hole spacing

2.5 Unit: mm

Machine speed ¢ 10-13

20-28PCS/min

Overall dimensions

3300 * 850 * 1700 Unit: mm

Machine speed ¢ 16-18

15-23PCS/min

Number of layers of rolled paper

1-4 layers optional
